產品特點
1.獨特的冷卻原理，使物料與冷空氣充分接觸獲得很好的冷卻效果。
2.體積容量比相同型號的逆流冷卻器擴大1.3倍，特別適合膨脹后物料體積增大的需要。
3.上部設有旋轉勻料機構，使機內料層維持同一水平，冷卻效果更均勻。
4.采用擺桿式排料機構，顆粒糊化度小，與膨脹器配套使用，更能顯出優越性。
5.活動部件少，結構簡潔，噪音低，無故障。
6.冷卻溫度不高于室溫5℃，遠遠優于國家標準。
主要技術及性能參數
型 號 參 數 | SKLB1.5 | SKLB2.5 | SKLB4 | SKLB6 | SKLB8 |
冷卻容積(m3) | 1.5 | 2.5 | 4 | 6 | 8 |
生產能力(t/h) | 3 | 5 | 10 | 15 | 20 |
冷卻時間 | 不少于10-15 | ||||
冷卻后料溫(℃) | 不高于室溫+3~5 | ||||
吸風量(m3/min.t) | 34 | ||||
配用動力 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 |
關風機動力 | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 |

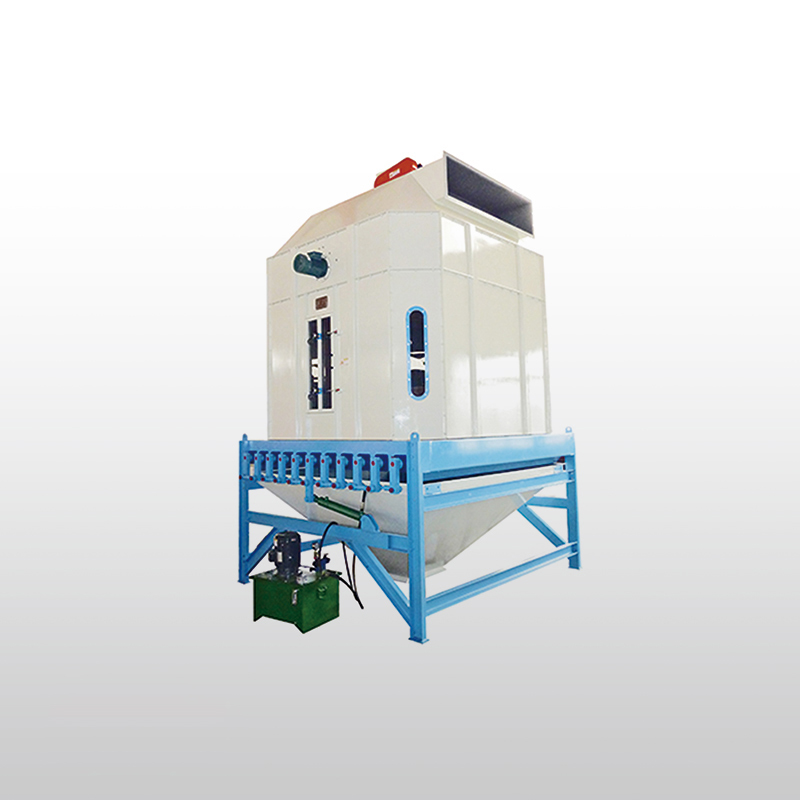

SKLB Series Swing Cooler
SKLB 系列擺式冷卻器
Features
The unique cooling principle makes the material contact with cool air sufficiently to obtain optimum cooling efficiency.
The cubic capacity is 1.3 times of the same type of counterflow cooler, It is specially suitable for expanded material.
A rotary uniforming system is mounted on the upper part which keeps the material at the same level in the machine so that the material is evenly cooled.
The swing link discharge system is used to minimize the powderizing of pellet. If it is completed with expander, it will display more superiority.
Less moving parts with compact structure, low noise and trouble free.
The cooled temperature is not 5℃ higher than room temperature, which is far better than the national standard.
Main Technical Parameters
Model Parameters | SKLB1.5 | SKLB2.5 | SKLB4 | SKLB6 | SKLB8 |
Volume(m3) | 1.5 | 2.5 | 4 | 6 | 8 |
Capacity(t/h) | 3 | 5 | 10 | 15 | 20 |
Cooling time(min) | Less than 10-15Mins | ||||
Temperature after Cooling(°C) | Not higher than ambient temperature +3~5 | ||||
Aspiration(m3/min.t) | 34 | ||||
Power(kw) | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 |
Power of Airlock (kw) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 |
